Power Supplies
$26.00 – $49.00

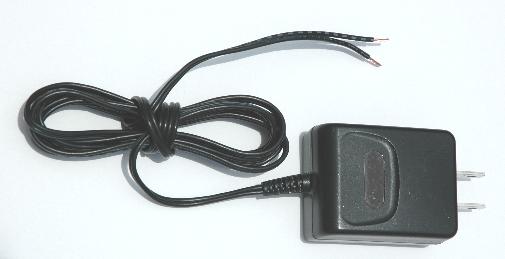

Three AC powered supplies are available for powering DGH products. The power supplies are available with either +5Vdc and +24Vdc output voltages and can be plugged into the wall output or mounted on a DIN-Rail.
Two +5Vdc power supplies can be used with the DIN-100 series modules, the H1750 and H1770 digital I/O products.
The +24Vdc power supplies can be used with the DGH D1000 through D8000 series products. They can also be used with the D1701, D1702, D1711 and D1712 digital I/O modules. The+24Vdc supply outputs 0.40 amps and operates on AC voltages between 100-240VAC.
Additional information
| PS-1 Specifications | • Output Voltage: +5.0Vdc @ 5.0 amps |
|---|---|
| PS-2 Specifications | • Output Voltage: +5.0Vdc @ 1.6 amps |
| PS-3 Specifications | • Output Voltage: +24.0Vdc @ 0.40 amps |
