DIN-190 RS-232/RS-485 Converter & Repeater
$120.00

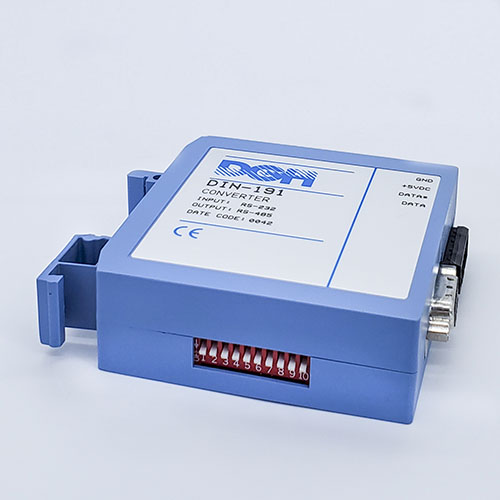

DIN-191 Converter
The DIN-191 module transparently converts RS-232 signals to those required by RS-485 at all standard baud rates from 300 to 115.2K baud. Internal control circuitry automatically controls the flow of data on the RS-485 bus. Therefore, the DIN-191 does not require external handshaking signals.
The DIN-191 is optically isolated from the RS-232 input to the RS-485 output by up to 500VAC and contains internal biasing and termination resistors for the RS-485 bus.
DIN-192 Repeater
The DIN-192 module transparently repeats RS-485 signals at all standard baud rates from 300 to 115.2K baud. Internal control circuitry automatically controls the flow of data on the RS-485 bus. Therefore, the DIN-192 does not require external handshaking signals.
The DIN-192 is optically isolated by up to 500VAC and contains internal biasing and termination resistors for each RS-485 port.
