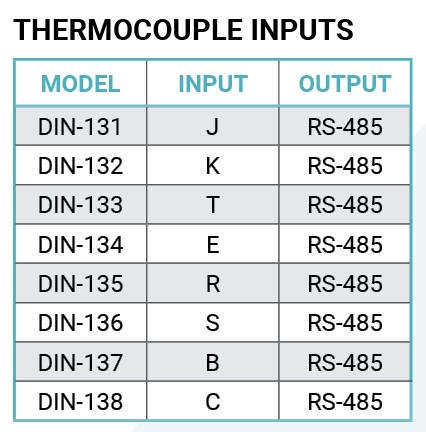

DIN-130 Modbus Thermocouple Input modulechart

DIN-130 Modbus Thermocouple Input Modules

Name: DIN-130 Modbus Thermocouple Input Modules
SKU: 10823
Price: 180.00 USD
Availability: InStock

$180.00

The DIN-130 thermocouple input modules contain an isolated 15-bit analog to digital converter and measure thermocouple temperature sensors. Each module is hardware optimized for the best measurement performance over a thermocouple input range. Eight different thermocouple input ranges are available.

The DIN-130 performs all signal conditioning, the analog to digital conversion and produces a linearized temperature output. The values are scaled in 16-bit unsigned integer format that represents a percentage of the full scale temperature range. The data values are transmitted to a host computer using the Modbus RTU serial protocol via an RS-485 serial port.

Download Datasheet

Download Manual

Download Modbus Register Map

Modbus Scaling Overview

The DIN-130 module easily mounts on industry standard 35mm DIN-rail.

Thermocouple Measurement Ranges:

J= -200 to +760 C
K= -150 to +1250 C
T= -200 to +400 C
E= -100 to +1000 C

B= 0 to +1820 C
S= 0 to +1750 C
R= 0 to +1750 C
C= 0 to +2315 C

*Input Range	Clear

SKU: N/A Categories: Analog Input Modules, DIN-100, DIN-100, DIN-100 Modbus Analog Input Modules, Modbus Modules Tags: analog input, B-Type, C-Type, data acquisition, DIN, DIN mount, DIN rail, DIN-130, DIN-131, DIN-132, DIN-133, DIN-134, DIN-135, DIN-136, DIN-137, DIN-138, E-Type, J-Type, K-Type, Modbus RTU, R-Type, RS-485, S-Type, T-Type, temperature, thermocouple, thermocouple input module

Additional information

Additional information

Power	• Regulated +5Vdc, 0.75W max. • Protected against power supply reversals
Features	• Types: J, K, T, E, R, S, B, C • Accuracy (errors from all sources) from 0 to +40C ambient: +/-1deg C max (J,K,T,E types). +/-2.5 deg C max for (R,S,B,C types). • Resolution: 1 degree C. • Common mode rejection: 100db at 50/60 Hz. • Lead resistance effect: <20uV per 350 ohms. • Input burnout protection to 250 VAC. • Input impedance: 100 megohm min. • Open thermocouple indication. • Overrange Indication. • Automatic cold junction compensation and linearization.
Software	The DIN-130 series remote I/O modules are compatible with all commercial software programs and OPC servers that support the Modbus RTU protocol. Commercials software programs from DreamReport, Wonderware, National Instruments Labview, Indusoft, DAQFactory and DASYLab all support the Modbus RTU protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus RTU protocol.
