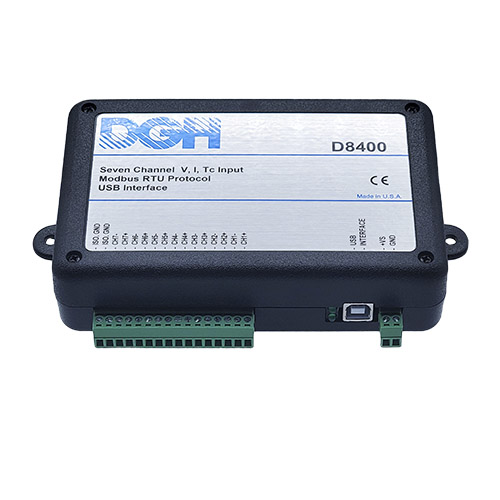

D8400 Modbus Analog Input Module
$375.00
The D8400 analog input module contains seven isolated differential inputs for measuring voltages, thermocouple temperature sensors and current signals such as 4-20mA. Each module can measure six different voltage ranges between +/-25mV and +/-10Vdc, one current range and eight thermocouple types. The thermocouple types include J, K, T, E, R, S, B and C types.
The D8400 analog input module performs a 16-bit analog to digital conversion on each input channel, linearizes the digital data and formats the result in a 16-bit unsigned integer format. The unsigned integer values represent a percentage of full-scale input range. See the Modbus scaling example link below.
The digital data values are transmitted to a host computer using the Modbus RTU serial protocol via the USB virtual serial port connection.
The D8400 USB analog input modules can be mounted on a DIN-rail using the MK-1 mounting kit.
Additional information
| Dimensions | 7.14 × 4 × 1.50 in |
|---|---|
| Voltage Ranges | +/-25mV, +/-50mV, +/-100mV, +/-1V, +/-5V, +/-10V |
| Current Range | +/-20mA |
| Thermocouple Types | J, K, T, E, R, S, B and C |
| Features | • User-selectable analog input range per channel. |
| Software | The D8400 series analog input module is compatible with all commercial software programs and OPC servers that support the Modbus RTU protocol. Commercials software programs from Wonderware, Intellution, National Instruments Labview, Indusoft, DAQFactory and Dasylab all support the Modbus RTU protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus RTU protocol. |
| Applications | • Process monitoring and control |
