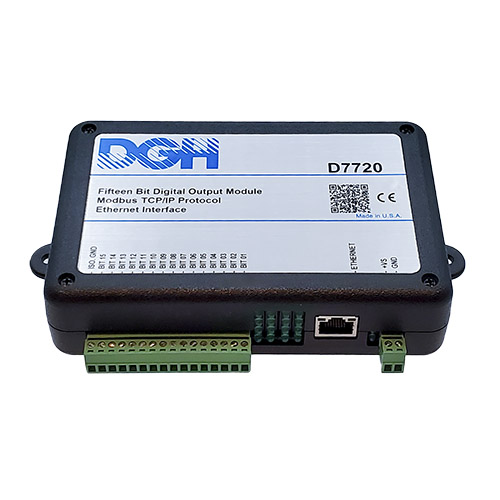

D7720 Modbus TCP/IP Ethernet Digital Output Module
$295.00
The D7720 Digital Output Module contains fifteen isolated outputs for controlling relays, lamps, or annunciators and communicates using the Modbus TCP ethernet protocol. The digital outputs are open-collector transistors, can sink up to 100mA per bit and can be pulled up to 30Vdc without damage. A user-programmable Initial Value register specifies the On/Off state of each bit on power-up.
The D7720 contains a communications Watchdog Timer that can force the digital outputs to a known “safe” condition in the event of a communications failure. The “safe” state of each digital output bit is specified in the Initial Value register.
The D7720 digital input module can be mounted on a DIN-Rail using the MK-1 mounting kit.
Additional information
| Dimensions | 7.14 × 4 × 1.50 in |
|---|---|
| Features | • 15 Open-Collector Digital Outputs |
| Software | The D7720 digital output modules are compatible with all commercial software programs and OPC servers that support the Modbus TCP/IP ethernet protocol. Commercials software programs from DreamReport, Wonderware, Indusoft, DAQFactory and DASYLab all support the Modbus TCP/IP ethernet protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus TCP/IP ethernet protocol. |
| Applications | • Process monitoring and control |
