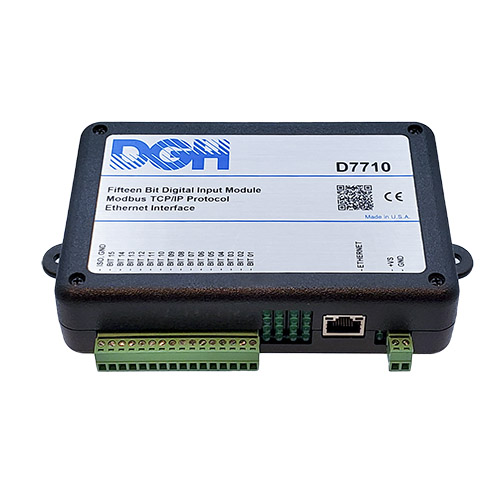

D7710 Modbus TCP/IP Ethernet Digital Output Module
$295.00
The D7710 Digital Input Module contains fifteen isolated digital input bits for monitoring switch contacts, relays and annunciators. The digital inputs have TTL switching levels, <1V=logic “0” and >3.5Vdc=logic ”1”. The inputs can accept 0-30Vdc signals without damage.
The digital inputs contain internal pull-up resistors on each bit for direct connection to switch contacts, relays, and annunciators. All digital input values are communicated to a host computer using the Modbus TCP ethernet protocol. Click on the data sheet and user’s manual links below for more details.
The D7710 digital input module can be mounted on a DIN-Rail using the MK-1 mounting kit.
Additional information
| Dimensions | 7.14 × 4 × 1.50 in |
|---|---|
| Features | • 15 Open-Collector Digital Input Module. |
| Software | The D7710 digital output modules are compatible with all commercial software programs and OPC servers that support the Modbus TCP/IP ethernet protocol. Commercials software programs from DreamReport, Wonderware, Indusoft, DAQFactory and DASYLab all support the Modbus TCP/IP ethernet protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus TCP/IP ethernet protocol. |
| Applications | • Process monitoring and control |
