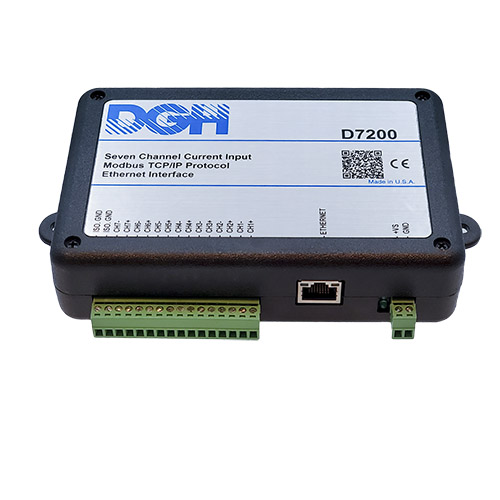

D7200 Modbus TCP/IP Ethernet Current Input Module
$345.00
The D7200 current input module contains seven differential inputs for measuring current signals such as 4-20mA. The module performs all signal conditioning, a 16-bit analog to digital conversion, linearization and stores the result in a 16-bit unsigned integer format. The unsigned integer values represent a percentage of the full scale current range.
The data values are transmitted to any supervisory host computer that supports the Modbus TCP ethernet protocol. See the links to a Modbus scaling example and product documentation below.
The D7200 4-20mA current input module can be mounted on a DIN-Rail using the MK-1 mounting kit.
Additional information
| Dimensions | 7.14 × 4 × 1.50 in |
|---|---|
| Range | +/-20mA |
| Features | • 7CH Differential 4-20mA Current Input Module. |
| Software | The D7200 modules are compatible with all commercial software programs and OPC servers that support the Modbus TCP/IP ethernet protocol. Commercials software programs from Wonderware, DreamReport, Indusoft, DAQFactory and Dasylab all support the Modbus TCP/IP ethernet protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus TCP/IP ethernet protocol. |
| Applications | • Process monitoring and control |
