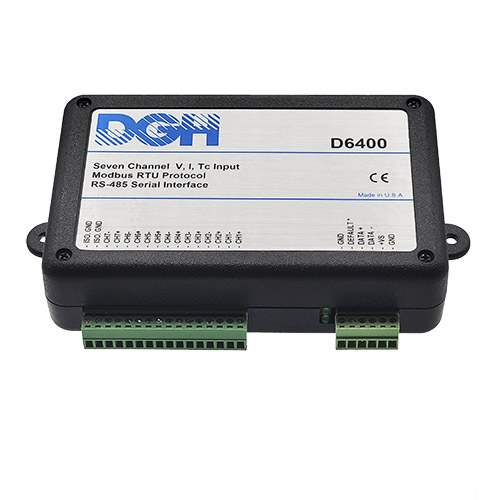

D6400 Modbus Analog Input Module
$375.00
The D6400 analog input module contains seven differential inputs for measuring DC voltages, current signals such as 4-20mA and thermocouple temperature sensors. Each input channel can be configured to measure one of six voltage ranges, eight thermocouple types or a current input such as 4-20mA.
The D6400 performs all signal conditioning, cold junction compensation for thermocouples, a 16-bit analog to digital conversion, linearization and stores the result in a 16-bit unsigned integer format. The unsigned integer data values represent a percentage of the temperature input full scale range.
The data values are transmitted to any supervisory host computer that supports the Modbus RTU serial protocol. See the links to a Modbus scaling example and product documentation below.

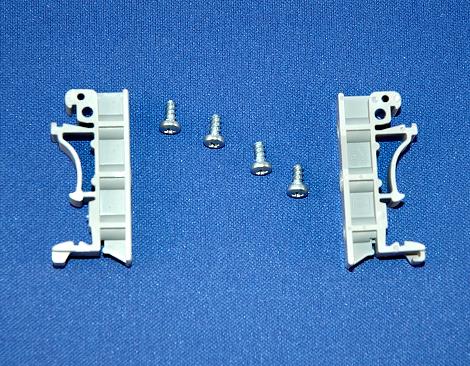

The D6400 analog input modules can be mounted on a DIN-rail using the MK-1 mounting kit.
Additional information

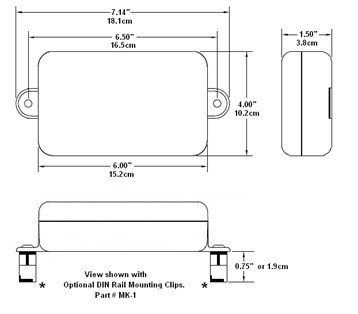

| Dimensions | 7.14 × 4 × 1.50 in |
|---|---|
| Voltage Ranges | +/-25mV, +/-50mV, +/-100mV, +/-1V, +/-5V, +/-10V |
| Current Range | +/-20mA |
| Thermocouple Types | J, K, T, E, R, S, B and C |
| Features | • 7CH Differential Volt, TC, Current Input Module |
| Software | The D6400 series analog input modules are compatible with all commercial software programs and OPC servers that support the Modbus RTU protocol. Commercials software programs from Wonderware, DreamReport, National Instruments Labview, Indusoft, DAQFactory and Dasylab all support the Modbus RTU protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus RTU protocol. |
| Applications | • Process monitoring and control |
You may also like…

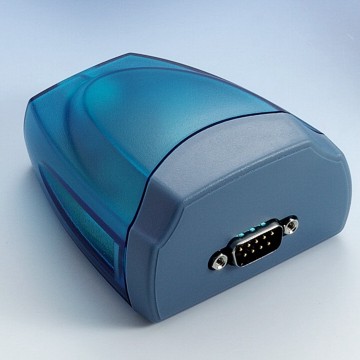

USB-COMi
$79.00DASYLab Data Acquisition Software
$0.00 – $1,799.00MK-1 Mounting Kit

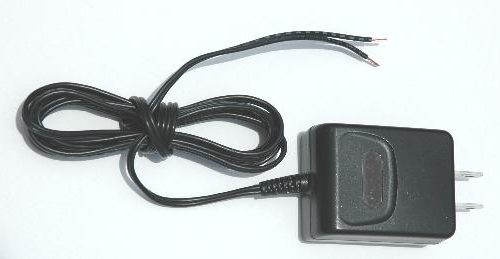

$10.00Power Supplies
