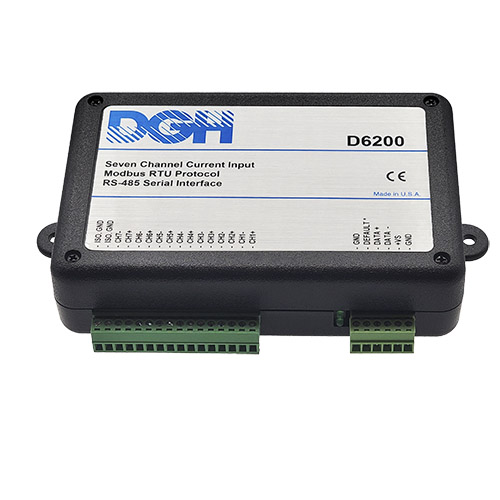

D6200 Modbus Current Input Module
$295.00
The D6200 current input module contains seven differential inputs for measuring current signals such as 4-20mA. The module performs all signal conditioning, a 16-bit analog to digital conversion, linearization and stores the result in a 16-bit unsigned integer format. The unsigned integer values represent a percentage of the current input full scale range.
The data values are transmitted to any supervisory host computer that supports the Modbus RTU serial protocol. See the links to a Modbus scaling example and product documentation below.
The D6200 current input modules can be mounted on a DIN-rail using the MK-1 mounting kit.
Additional information
| Dimensions | 7.14 × 4 × 1.50 in |
|---|---|
| Features | • 7CH Differential Current Input Module |
| Software | The D6200 current input modules are compatible with all commercial software programs and OPC servers that support the Modbus RTU protocol. Commercials software programs from Wonderware, DreamReport, National Instruments Labview, Indusoft, DAQFactory and Dasylab all support the Modbus RTU protocol. OPC Servers from Kepware and MatrikonOPC support the Modbus RTU protocol. |
| Applications | • Process monitoring and control |
