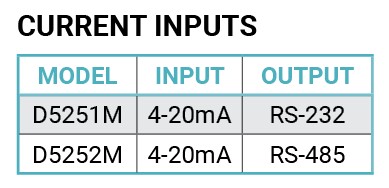

D5200M Modbus 4-20mA Current Input Module
$250.00
The D5200M Modbus four channel 4-20mA current input modules provide direct connection to four 4-20mA signals with full scale input range of 0-25mA.
The D5200M Modbus 4-20mA current input modules provide an isolated 15-bit measurement, analog to digital conversion and linearization of the digital data. The digital data values are scaled in 16-bit unsigned integer data format that represents a percentage of full scale. See the Modbus scaling example link below.
The digital data values are transmitted to a host computer using the Modbus RTU serial protocol via an RS-232 or RS-485 serial connection. The D5000M series supports up to 247 Modbus RTU devices on one RS-485 serial port. Since Modbus protocol does not support RS-232 echoing, D5000M series modules cannot be daisy-chained. This limits you to one module per RS-232 serial port.
The D5200M Modbus 4-20mA current input modules can be mounted on a DIN-rail using the MK-1 mounting kit.
Additional information
| Dimensions | 3.60 × 2.45 × 1.1 in |
|---|---|
| Specifications | • Range: 4-20mA. |
| Communications |
