D5100 Voltage Input Module

Name: D5100 Voltage Input Module
SKU: 11066
Price: 250.00 USD
Availability: InStock

$250.00

The D5100 four channel voltage input modules provide direct connection to four analog signals of the same input type with full scale input ranges from +/-100mV to +/-100Vdc.

The voltage input modules provide an isolated 15-bit measurement, analog to digital conversion and a linearized data output scaled into engineering units. The scaled data is communicated using either RS-232 or RS-485.

The D5100 series include user-selectable linear scaling of the ADC output data values to desired engineering units that match the application. The user-selectable linear scaling applies to all four channels.

Download Datasheet

Download Manual

The D5100 four channel voltage input modules can be mounted on a DIN-rail using the MK-1 mounting kit.

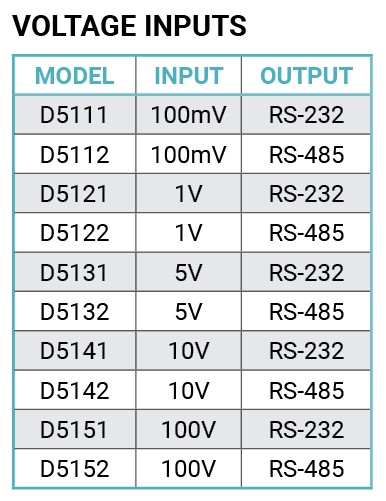

SKU: N/A Category: D5000 Tags: analog input module, D5111, D5112, D5121, D5122, D5131, D5132, D5141, D5142, D5151, D5152, data acquisition, four channels, RS-232, RS-485, user scaling, voltage, voltage input, voltage input module

Additional information

Additional information

Dimensions	3.60 × 2.45 × 1.1 in
Specifications	• Ranges: +/-100mV, +/-1V, +/-5V, +/-10V, +/-100V. • Accuracy:+/-0.02% of full scale. • Resolution: 0.01% of full scale. • Common mode rejection: 100db at 50/60 Hz. • Zero drift:+/-1 count max (autozero). • Span tempco:+/-50ppm/deg C max. • Input burnout protection to 250 VAC. • Input impedance: +/-100mV, +/-1V = 100 megohm min., +/-5V, +/-10V, +/-100V = 1 megohm min.
Communications	RS-232 Only, RS-485 Only
