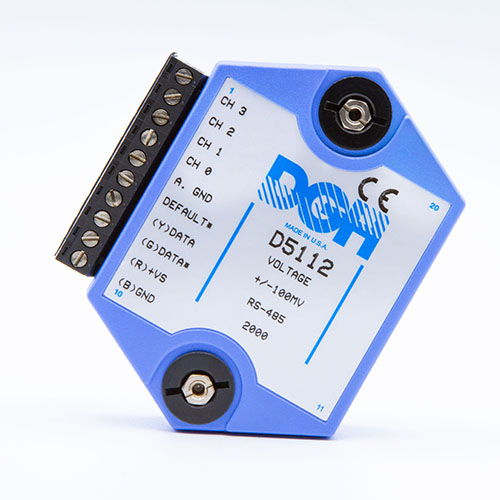

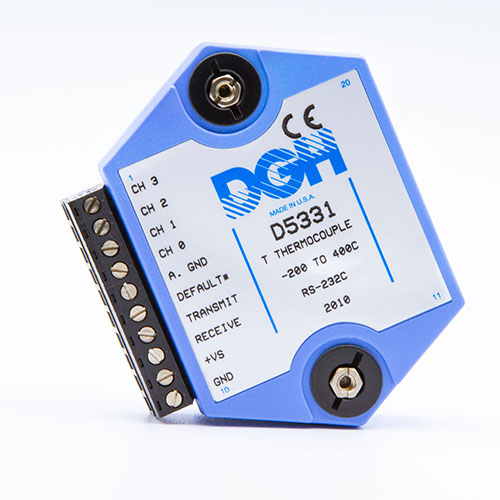

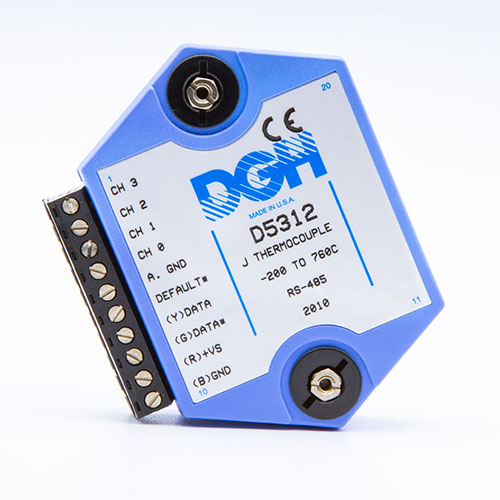

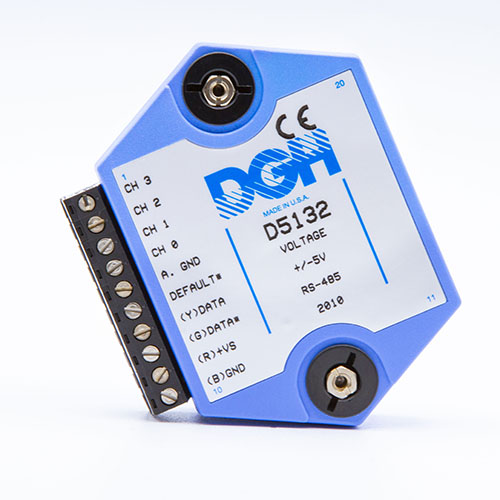

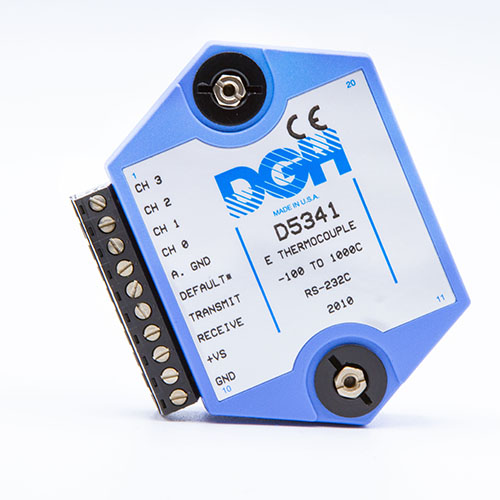

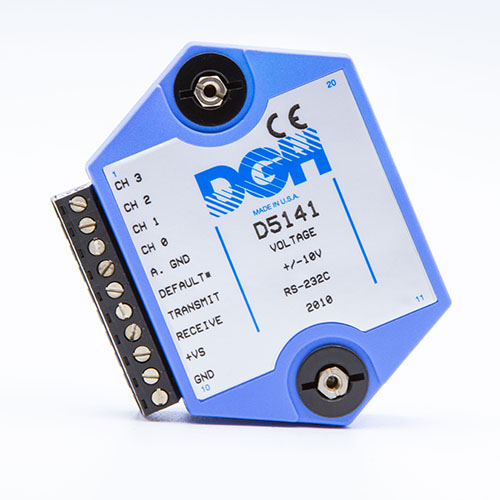

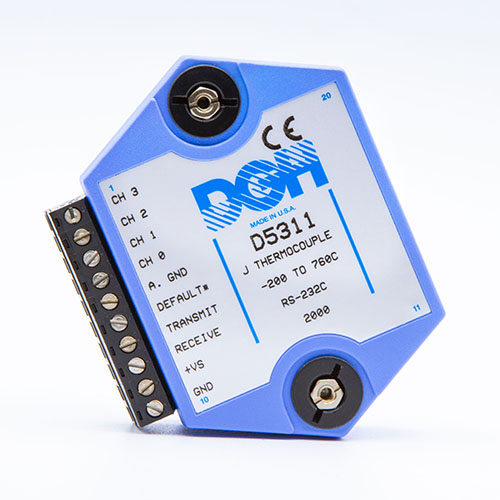

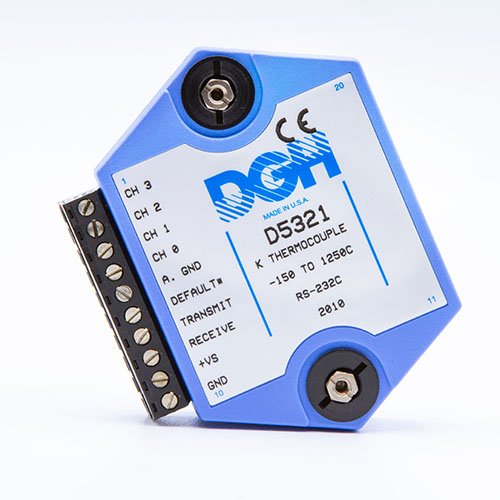

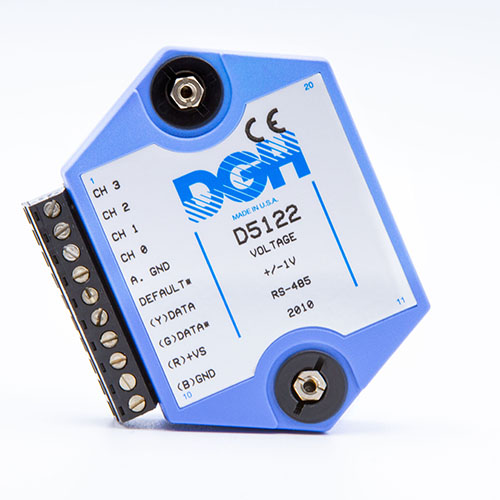

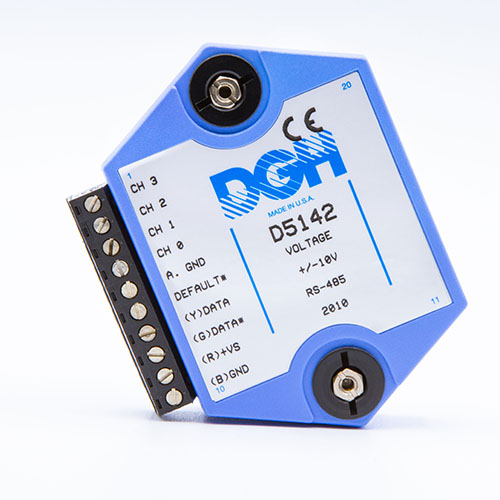

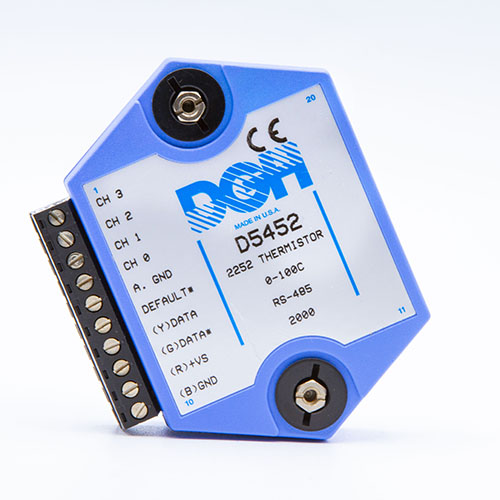

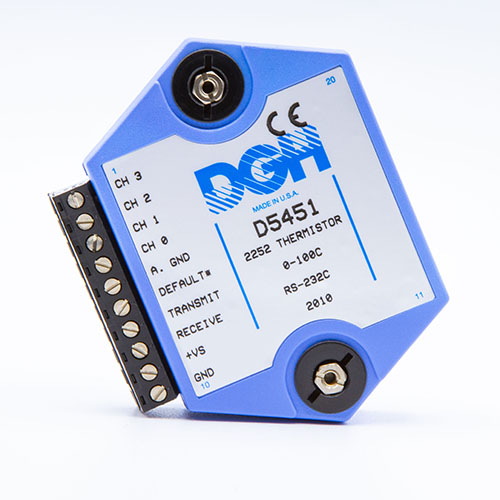

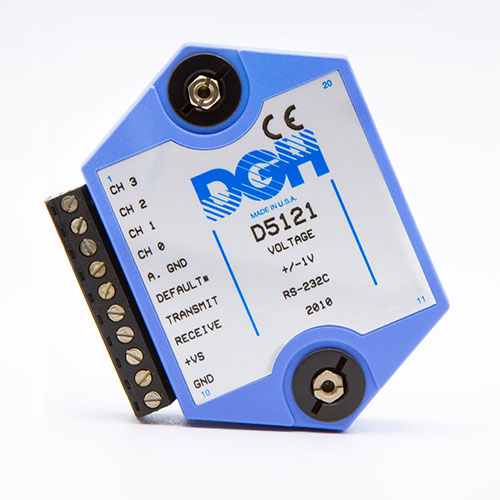

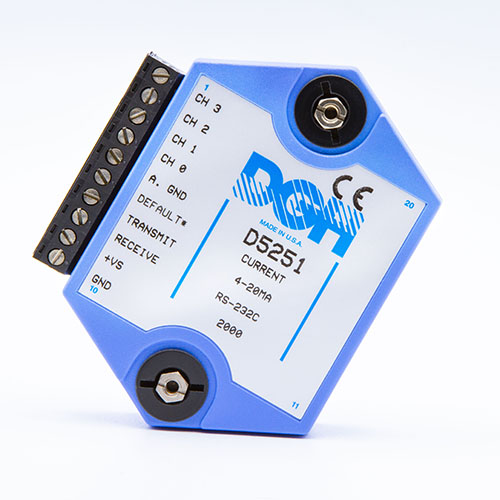

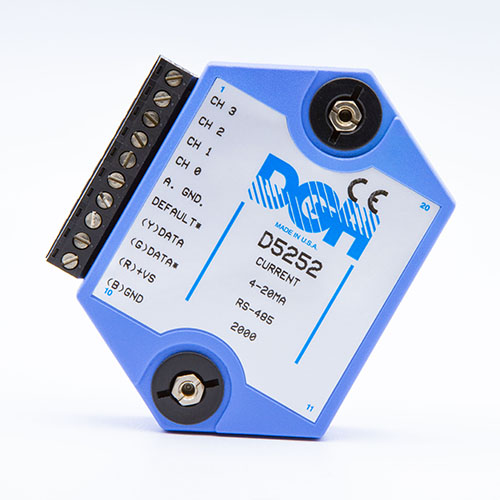

D5000 Four Channel Analog Input Modules
$250.00 – $275.00
The D5000 four channel analog input modules are low-cost data acquisition modules that provide direct connection to four analog signals of the same type. The modules perform all signal conditioning, scaling, linearization and conversion to engineering units. The scaled data is communicated using either RS-232 or RS-485.
In addition, the D5000 four channel analog input modules provide user-selectable linear scaling of the analog input signals into desired engineering units. For example: 4-20mA signals can be measured by the module and output scaled data values as 0-100%.
The D5000 four channel analog input modules are isolated from input to output. However, the inputs are not isolated channel to channel.
The D5000 four channel analog input modules can also be mounted on a DIN-Rail using the MK-1 mounting kit.
Additional information
| Power | • Unregulated +10-30Vdc, 0.75W Max. |
|---|---|
| Communications | • RS-232 or RS-485 Serial Interface |
| Software | • Dasylab |
| Applications | • User Programmable Scaling for Non-Linear Sensors. |
| Data Logger | Develop a low cost data logger using a seven channel 4-20mA analog input module and the AzeoTech DAQFactory Express HMI SCADA software. The software is a free HMI SCADA software program that collects data from up to eight channels and displays two HMI screens. DAQFactory Express also includes data logging to file with date and time stamps using the MS-Excel compatible ASCII comma-delimited data format. |
