D1600M Modbus Modules with Frequency Input
$250.00
The D1600M modules measure frequency signals from sensors between 1hz-20Khz. Both unipolar and bipolar frequency signals can be measured. The module conditions the signal, converts it to digital data and linearizes the value into a 16-bit unsigned integer data format that represent a percentage of the frequency input range. The data values are transmitted to a host computer using the Modbus RTU serial protocol via an RS-232 or RS-485 serial port.
The D1600M frequency input modules contain one discrete digital input for monitoring contact closures or switches. The discrete digital inputs can accept +/-30Vdc signals without damage. The discrete switching levels are <+1Vdc = logic “0”, >+3.5Vdc equals a Logic “1”.

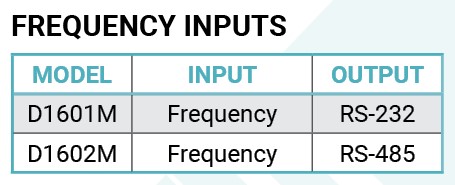

Because the Modbus protocol does not support Echoing the RS-232 versions of D1000M series are limited to one module per serial port. Applications requiring more than one module should use RS-485.
Use the links below to download a Datasheet, User’s Manual or view the Modbus Scaling Example.
The D1600M series modules can also be mounted on a DIN-Rail using the MK-1 mounting kit.
Additional information
| Dimensions | 3.60 × 2.45 × 1.1 in |
|---|---|
| Specifications | • Input Impedance: 1megohm min. |
| Accumulator Input | • Pulse count: Up to 10 million positive transitions. |
| Frequency Inputs | • Resolution: 0.005% of reading + 0.01Hz. |
