- 6 digital inputs (DIN-171) or 6 digital outputs (DIN-172)
- Input voltage levels: +/-30V without damage
- Input switching levels: high, 3.5V min., Low, 1.0V max
- Outputs: open collector to 30V, 100mA max load load
- Vsat: 1.0V max @ 100mA
- Input/Output signals are read/set in parallel
- Isolated from power supply ground

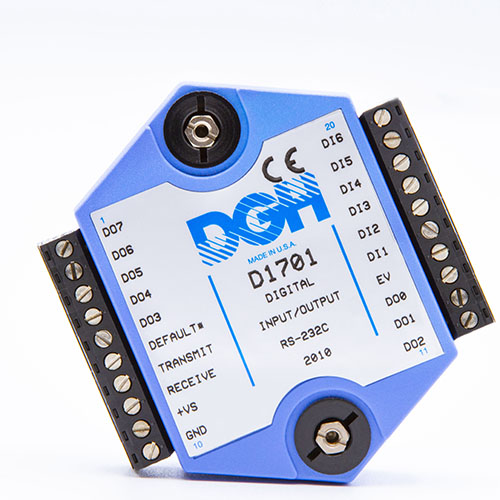

- Seven digital inputs and eight digital outputs
- One Events Counter, 60Hz max.
- Input voltage levels: +/-30V without damage
- Outputs: open collector to 30V, 30mA max load
- Vsat: 0.3V max @ 30mA
- Inputs/Outputs are read/set in parallel
- DGH ASCII protocol via RS-232 or RS-485
- Seven digital inputs and eight digital outputs
- Input voltage levels: +/-30V without damage
- Outputs: open collector to 30V, 30mA max load
- Vsat: 0.3V max @ 30mA
- Inputs/Outputs can be read/set individual or in parallel
- DGH ASCII or Modbus RTU protocol via RS-232 or RS-485
- 24-bit and 64-bit Digital Input/Output Boards
- User-Selectable Inputs and Outputs
- Input voltage levels: 0-10V without damage
- Input switching levels: High, 3.5V min., Low, 1.0V max.
- Outputs: open collector to 10V, 15mA max load
- Communications Watchdog Timer for Digital Outputs
- Inputs/Outputs can be read/set individually or in parallel
- Jumper-Selectable RS-232 or RS-485 interface
- DGH ASCII Serial protocol
- 24-bit and 64-bit Digital Input/Output Boards
- User-Selectable Inputs and Outputs
- Input voltage levels: 0-10V without damage
- Input switching levels: High, 3.5V min., Low, 1.0V max.
- Outputs: open collector to 10V, 15mA max load
- Communications Watchdog Timer for Digital Outputs
- Inputs/Outputs can be read/set individually or in parallel
- Jumper-Selectable RS-232 or RS-485 interface
- DGH ASCII or Modbus RTU Serial protocol
- 15-bit Digital Input or 15-bit Digital Output modules
- Isolation 500Vac, digital common to system ground
- Input voltage levels: +/-30V without damage
- Input switching levels: High, 3.5V min., Low, 1.0V max.
- Outputs: open collector to 30V, 100mA max load
- Vsat: +0.3Vdc max. at 100mA.
- Communications Watchdog Timer for Digital Outputs
- Modbus RTU serial protocol via RS-485
- 15-bit Digital Input, 15-bit Digital Output, and 7 Digital Input/8 Digital Output modules
- Isolation 500Vac, digital common to system ground
- Input voltage levels: +/-30V without damage
- Input switching levels: High, 3.5V min., Low, 1.0V max.
- Outputs: open collector to 30V, 100mA max load
- Vsat: +0.3Vdc max. at 100mA.
- Communications Watchdog Timer for Digital Outputs
- Modbus TCP protocol via 10/100M RJ45 Ethernet Interface
- 15-bit Digital Input or 15-bit Digital Output modules
- Isolation 500Vac, digital common to system ground
- Input voltage levels: +/-30V without damage
- Input switching levels: High, 3.5V min., Low, 1.0V max.
- Outputs: open collector to 30V, 100mA max load
- Vsat: +0.3Vdc max. at 100mA.
- Communications Watchdog Timer for Digital Outputs
- Modbus RTU serial protocol via USB Interface
