Control Outputs

DGH offers modules that convert communications data values to various outputs, including voltage and current signals. Our modules are used in any application requiring a control input signal. For example, control annunciators, valves, or motion control devices.

D3000 Series
Blue D3121 Module with Voltage Outputs
  • Voltage Outputs
  • Accuracy: 0.1% of full scale range max.
  • 12-bit output resolution.
  • 1000 conversions per second.
  • Settling time: 300uS typical (1 mS max.).
  • Span tempco: +/-50ppm/degree C max.
  • Voltage output drive: 5mA max.
  • Three digital inputs.
  • RS-232 or RS-485 Output
D3000M Series

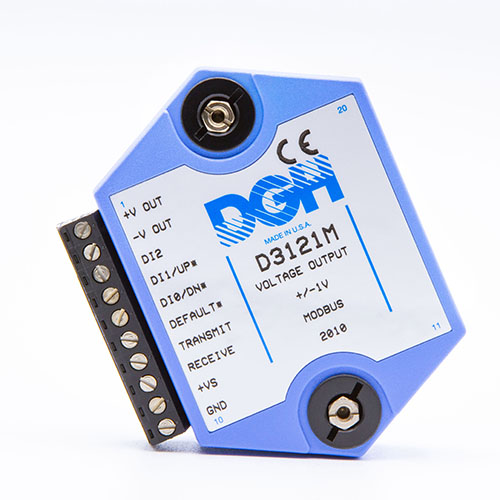

Blue D3121M Modbus Module providing Voltage Outputs
  • Voltage Outputs
  • Accuracy: 0.1% of full scale range max
  • 12-bit output resolution
  • 1000 conversions per second
  • Settling time: 300uS typical (1 mS max.)
  • Span tempco: +/-50ppm/degree C max
  • Voltage output drive: 5mA max
  • Three digital inputs
  • Modbus RTU Serial Output
  • RS-232 or RS-485
D4000 Series
Blue D4121 Module providing Voltage or Current Outputs
  • Voltage and 4-20mA Outputs
  • Programmable Input Data Values
  • Accuracy: 0.1% of full scale range max
  • 12-bit output resolution
  • 1000 conversions per second
  • Settling time: 300uS typical (1 mS max.)
  • Span tempco: +/-50ppm/degree C max
  • Analog Output Readback
  • Three digital inputs
  • RS-232 or RS-485
D6500 Module

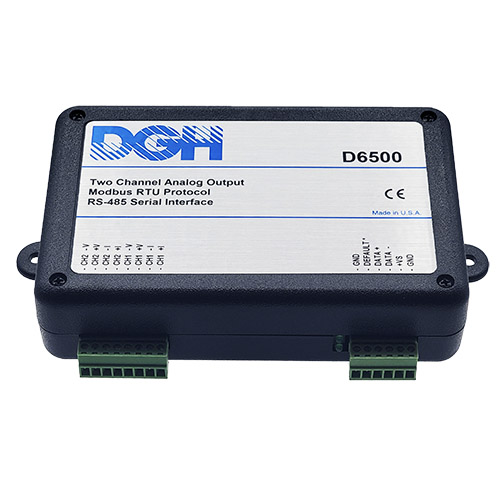

D6500 Modbus Analog Output Module
  • Programmable voltage or current ranges
  • Voltage Ranges: 0-10Vdc, +/-10Vdc
  • Current Ranges: 0-20mA, 4-20mA
  • 250 conversions per second
  • Accuracy: +/-0.1%
  • 12-bit DAC resolution
  • Settling Time to 0.1% FS: 1mS
  • Communications Watchdog Timer
  • 8-bit ADC Analog output signal readback
  • Isolation 500Vac, output common to system ground
D7500 Module
D7500 Modbus TCP/IP Ethernet Analog Output Module
  • Two analog outputs
  • Programmable voltage or current ranges
  • Voltage Ranges: 0-10Vdc, +/-10Vdc
  • Current Ranges: 0-20mA, 4-20mA
  • 250 conversions per second
  • Accuracy: +/-0.1%
  • 12-bit DAC resolution
  • Settling Time to 0.1% FS: 1mS
  • Communications Watchdog Timer
  • 8-bit ADC Analog output signal readback
  • Isolation 500Vac, output common to system ground
  • Modbus TCP Interface
D8500 Module

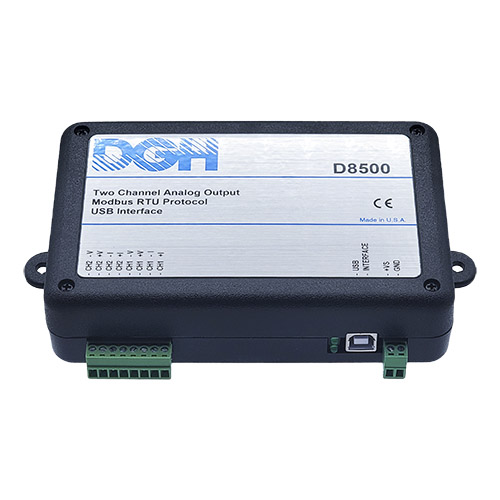

D8500 Two Channel Analog Output Module - black box with USB connection on transparent background.
  • Two analog outputs
  • Programmable voltage or current ranges
  • Voltage Ranges: 0-10Vdc, +/-10Vdc
  • Current Ranges: 0-20mA, 4-20mA
  • 250 conversions per second
  • Accuracy: +/-0.1%
  • 12-bit DAC resolution
  • Settling Time to 0.1% FS: 1mS
  • Communications Watchdog Timer
  • 8-bit ADC Analog output signal readback
  • Isolation 500Vac, output common to system ground
  • USB, Modbus RTU Interface
